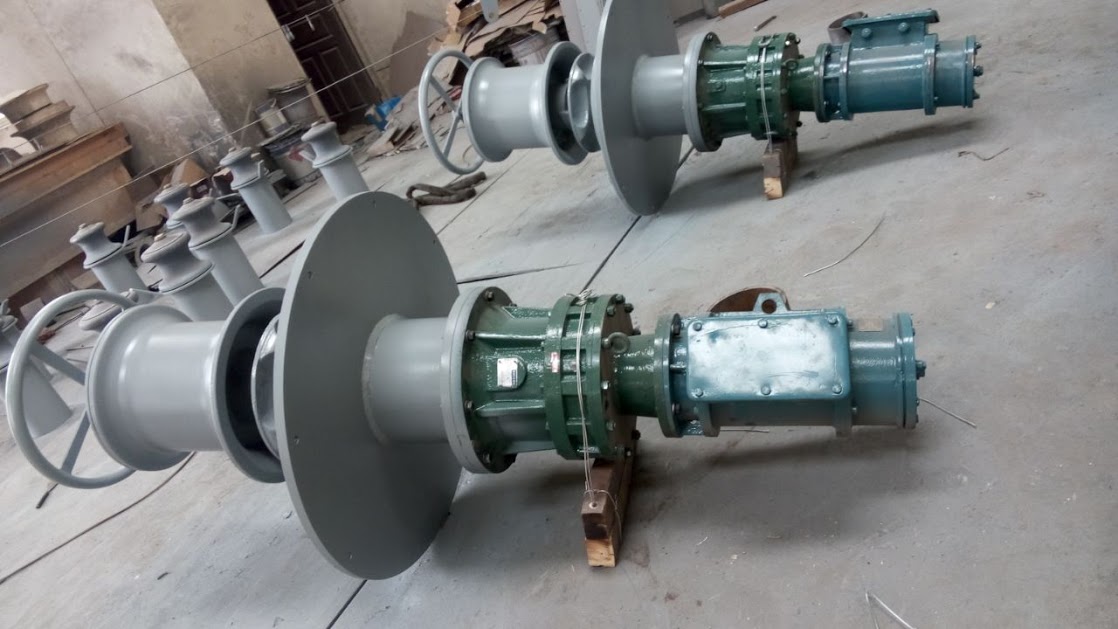

Marine Capstan
Product Name:
Marine Capstan
No. :
13
Product Description
1. This capstan can adopt electric or hydraulic drive.
.jpg)
2. Configurations are vertically mounted.
3. Warping head of the capstan uses cast steel.
4. Rated pull of the 1st layer can reach from 0.5MT to 20MT.
5. Max wire speed of this capstan winch is 20m/min.
6. Local control is available for customers.
|
Model |
NRT-5-200 |
NRT-5-200 |
|
Drive |
Hydraulic or Electric |
|
|
Type |
Vertical or Horizontal |
|
|
Rated Load |
5KN-200KN |
5KN-200KN |
|
Rated Speed |
10-20m/min |
10-20m/min |
|
|
||
|
Dia. Wire rope |
13-32mm |
13-32mm |
|
|
||
|
Clutch |
Hydraulic / Handle Operated Jaw Type |
|
|
Brake |
Spring Loaded Hydraulic Release / Handle Operated Jaw Type |
|
|
Power Required |
4-75KW |
4-75KW |
|
Control |
Local Control and Remote Control in Wheel House |
|
|
Option |
Length and Tension Monitoring System |
|
